FERROUS METAL SEPARATORS

Ballistic Magnet Separator

The Magnapower Ballistic Magnet Separator is a cutting-edge solution engineered to transform the efficiency and accuracy of ferrous metal sorting in recycling and material recovery facilities. Designed for high-performance separation, this advanced system excels in isolating high-value “meatballs” of dense copper from steel fragments. The result: cleaner ferrous output with dramatically reduced copper contamination.

Whether you’re aiming to maximise copper recovery or improve the purity of your ferrous stream, the Magnapower Ballistic Magnet Separator delivers unmatched performance—generating streams of high-purity steel and high-value copper at speed.

GET IN TOUCH

Customised Solutions.

Precision-Engineered in the UK.

Fast Repairs & Parts Turnaround.

Proprietary Magnet Design.

BALLISTIC MAGNET SEPARATOR

How it works

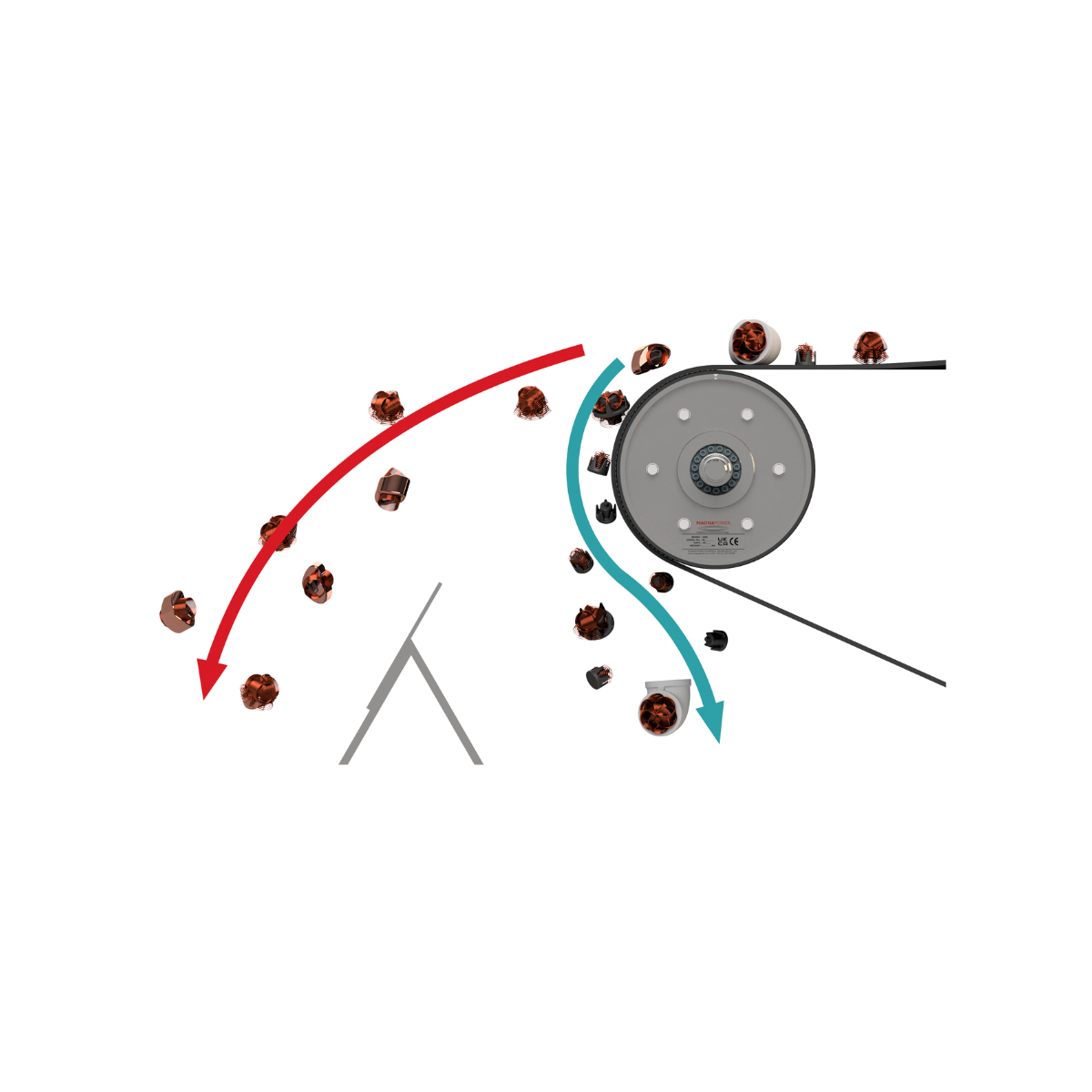

Leveraging ballistic principles and magnetic assistance, the separator classifies materials based on shape, weight, and density, using velocity to pre-sort incoming streams. This pre-classification ensures optimal downstream sorting and boosts overall material recovery efficiency.

ENQUIRE TODAY


Effective Width	1500mm (60″)
Rotor Drive	3KW
Conveyor Belt Drive	7.5KW
Belt Speed	Variable 2.0-4.0 Mtrs / Sec
Weight	4,372Kg
Total Length	7,775mm
Total width (inc Rotor)	2,164.5mm

BALLISTIC METAL SEPARATOR

The advantages:

Meatball Concentration: Effectively separates meatballs into a distinct fraction, streamlining copper picking operations.
Cleaner Ferrous Output: Significantly lowers copper levels in steel, enhancing purity and resale value.
Labour Reduction: Minimises manual sorting, cutting operational costs.
Heavy-Duty Build: Built for industrial resilience and long-term durability.
Variable Belt Speed: Offers flexible control to adapt to different material flows and sorting needs.
Reduced Running Costs: No electrical supply to the magnet system
